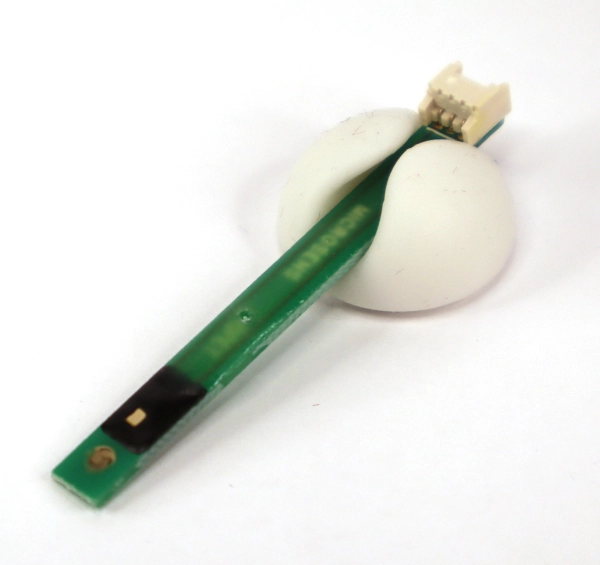

MSFET sensor head with ISFET and reference electrode
Price :
ask for a quote. Minimum quantity: 3 sensor heads.
Miniaturized sensor head combining the MSFET sensor (MSFET 3330 or MSFET 334x) with a reference electrode
Description
The MSFET3351 and MSFET3352 combine the MSFET3330 (or MSFET334x on request) and a MSREF into an integrated sensor head. Using the MSFET3351 or MSFET3352 removes the need for a separate reference electrode. The MSFET3351 for example allows measurements in recipients such as a 96well plate with liquid volumes as low as 0.5ml.
Characteristics
- Small size
- Glass-free construction
- Robust design
- Dry storage
- wide range of applications
Key Specifications
- Typical pH range: pH2 - pH12
- Typical sensitivity: 55mV/pH
- Response time: 90% signal level: < 5 sec
- requires the MSFET Interface: MSFET Interface product page
Options
- Standard housing - MSFET3351
- Round housing (packaged: 12mm diameter) - MSFET3352
